TotalTemp’s Mission is to provide better functionality and support to customers with more affordable thermal testing systems.

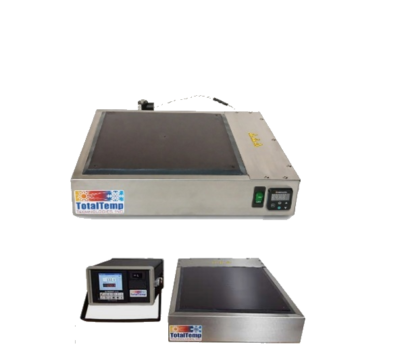

Premium Thermal Platforms

Also known as hot plates, thermal plates, or hot/cold plates.

Thermal Platforms are perfect for using conductive transfer to test components hot and cold, they work best for parts with a low or flat physical profile. They transfer heat outstandingly for programmed or very rapid heating and cooling transition times (that’s why they’re called hot plates or cold plates as well), and have a precise temperature control every time from cryogenic temperatures to extremely hot (-100°C To +200°C).

The incorporation of these hot/cold plates in your testing process can be a great alternative to an environmental chamber.

shield icon

Extreme Reliability

Many products have CE mark testing and compliance to provide maximum reliability.

medallion icon

Unmatched Quality

Our mission is to provide excellent products and services at accessible prices.

microchip icon

Latest Technology

All products are developed with the latest technology and innovative frameworks.

hands icon

Customer Service

We take pride in providing excellence in every relationship that we build with our customers. Extended-range models are also available.

Featured Products

Cryogenically Cooled Thermal Platforms

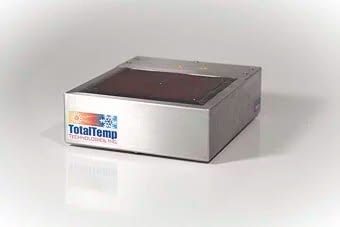

SD49 Thermal Platform

6.5″ x 7.5″ Surface

  • Small footprint for minimal impact
  • Excellent access to DUT
  • Energy-efficient temperature cycling
  • Extremely fast temperature transition rates
  • Hard-plated anodized surface for durability

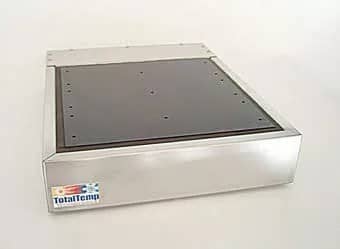

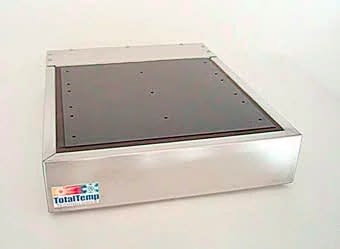

SD144 Thermal Platform

12″ Square Surface

  • Low initial purchase cost
  • High-accuracy temperature sensors for precise control
  • Abundant heater arrangement for low surface gradients
  • Rugged Stainless Steel chassis
  • Adapter plates available

SD14

3.75″ x 3.75″ usable surface area (14 sq. in / 90 sq. cm)
Chassis dims. (HxWxD) 3.38″ x 6.31″ x 10.31″

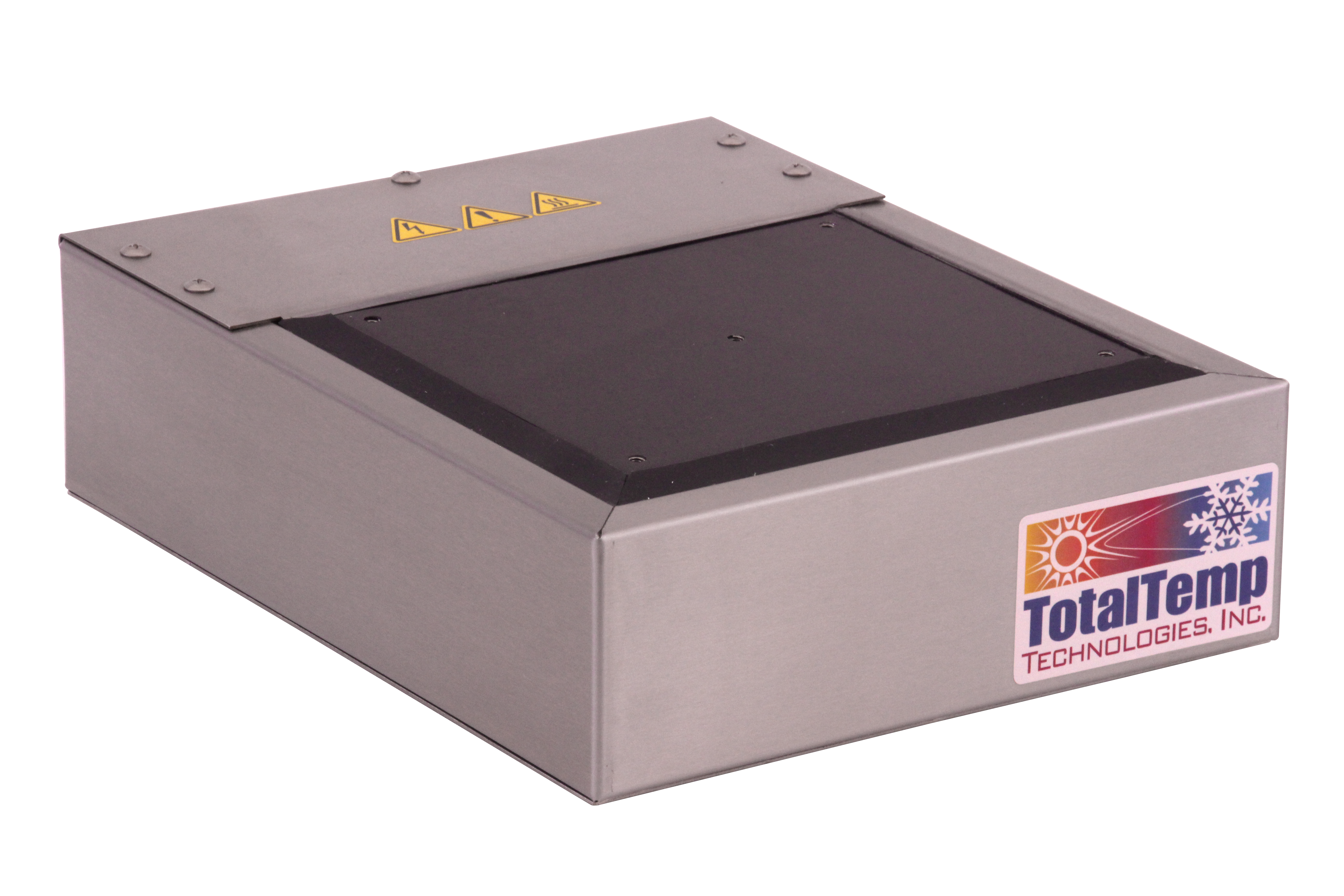

SD49

6.5″ x 7.5″ usable surface area (49 sq in / 315 sq cm)
Chassis dims. (HxWxD) 3.38″ x 9.88″ x 12.25″

SD98

SD98

6.5″ x 15″ usable surface area (98 sq in / 630 sq cm)
Chassis dims. (HxWxD) 3.38″ x 17.38″ x 12.25″

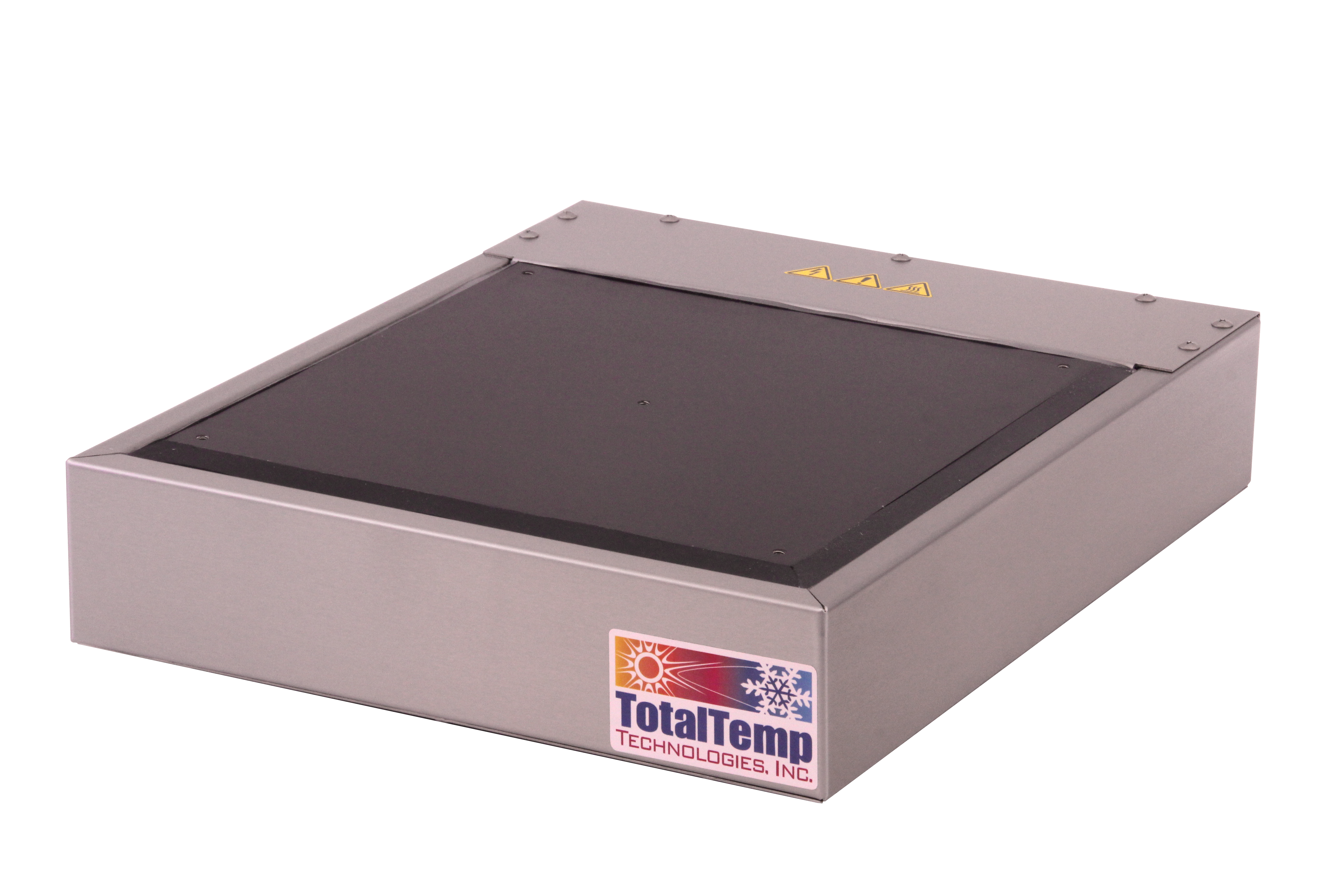

SD144

12″ x 12″ usable surface area (144 sq in / 929 sq cm)
Chassis dims. (HxWxD) 3.38″ x 14.5″ x 17.75″

SD288

SD288

12″ x 24″ usable surface area (288 Sq In/ 1860 sq cm)
(Adapter Plate Option)



SD450

SD450

25 x 18 Inch surface, 450 Sq. Inches or 2900 Sq. Cm.
Excellent access to DUT.



3.75″ Square

6.5″ x 15″ shown with adapter plate

Heat Only Thermal Platforms
Heat Only Thermal Platforms
