Model C460
The C460 Benchtop Chamber
16″ x 19.5″ x 12.5″ height workspace. Left and
right 3.8″ cabling feed-throughs.
HBC144-N
The HBC144-N Hybrid Benchtop Chamber
13″ x 13″ x 8.5″ high workspace. Left and
right 2″ cabling feed-throughs.
It has a 12” x 12” thermal platform built into the floor.
The same chamber without the thermally controlled platform is our Mini Chamber BC144
Model HBC49-N and HBC144-N Hybrid Benchtop Temperature Chambers
HBC49-N
The HBC49-N Hybrid Benchtop Chamber
7.5” 8.5” x ~5”H workspace. Left and
right cabling feed-throughs.
It has a 6.5” x 7.5” thermal platform built into the floor.
The same chamber without the thermally controlled platform is our Mini Chamber BC49
Hybrid chambers +175°C to -70°C
L-N2 +200°C to -100°C, High or Low Pressure (as low as -195°C available)
L-CO2 +200°C to -65°C, High or Low Pressure
-40°C with Single Stage Not available on all chambers
-70°C with Dual Stage (Cascade) Not available on all chambers
TotalTemp Technologies Temperature Chambers
They are used in many places to simulate thermal environments. Typically for various specific test purposes. They are often used to stress test and validate electronic systems /components. They are also useful for tests with biological items, specimens, industrial products, materials and mechanical devices. Chambers are used to qualify the proper operation while the parts are being exposed to thermal environments, similar to what they will be expected to operate in while over product life. Temperature chambers can be optimized for specific testing such as burn-in, accelerated life testing, stress testing according to specific standards or simply to weed out early failures in any production.
TotalTemp is focused on Benchtop thermal test equipment and custom products. Larger chambers, Humidity salt spray are not our specialties, TotalTemp does offer Thermal Vacuum Products which performs best with the conductive heat transfer of a Thermal Platform.

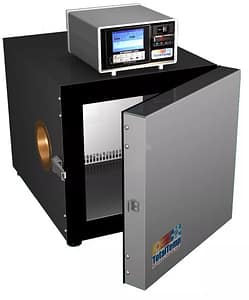

Model C230
Benchtop Temperature Chamber
Made to order with a competitive purchase price
Even heating and cooling or dual-zone option
Extremely fast temperature transition rates
High accuracy temperature sensors
Reliable Stainless Steel Interior
Optional Shelves for DUT
Excellent access to DUT
Made in America

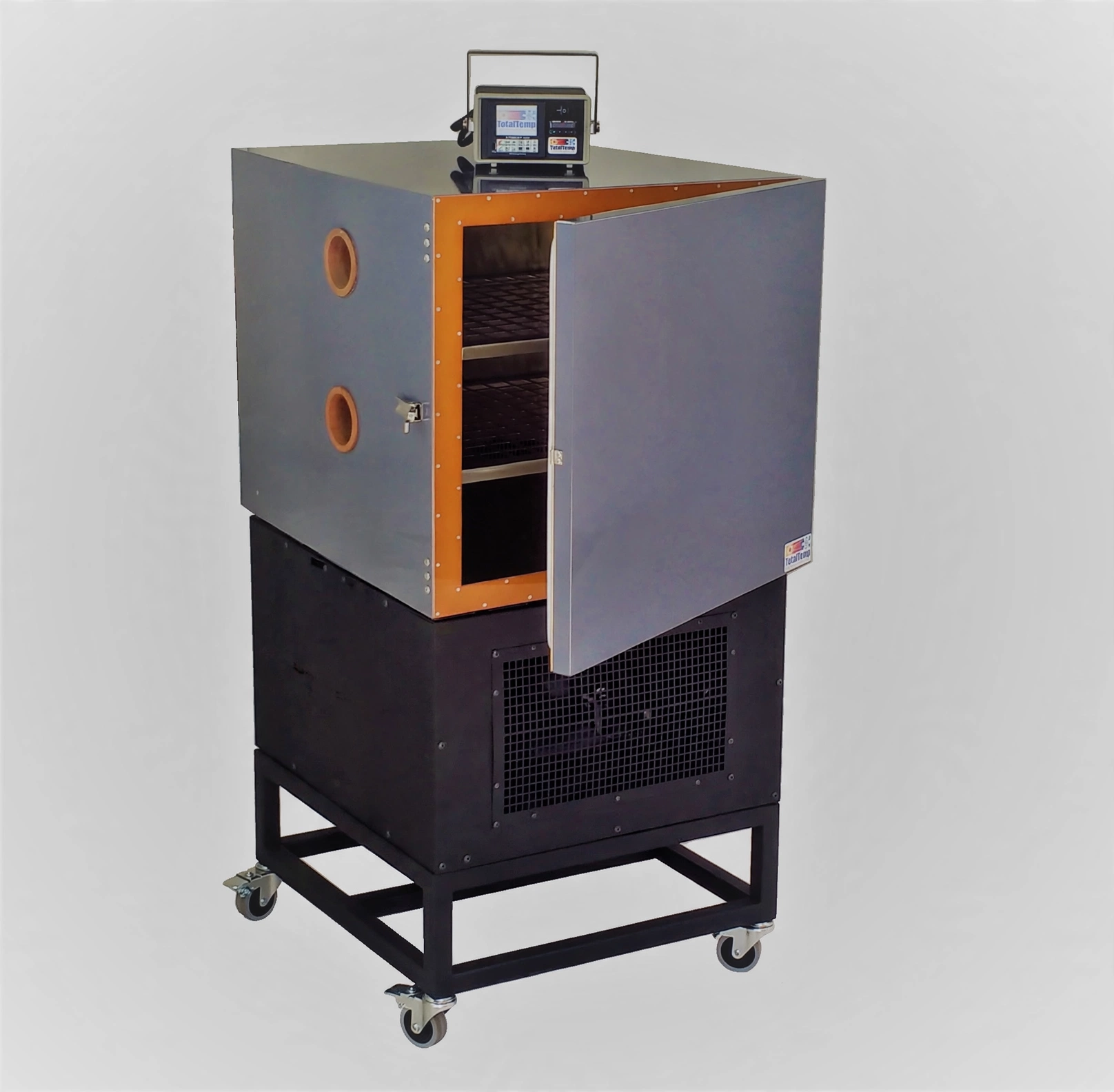

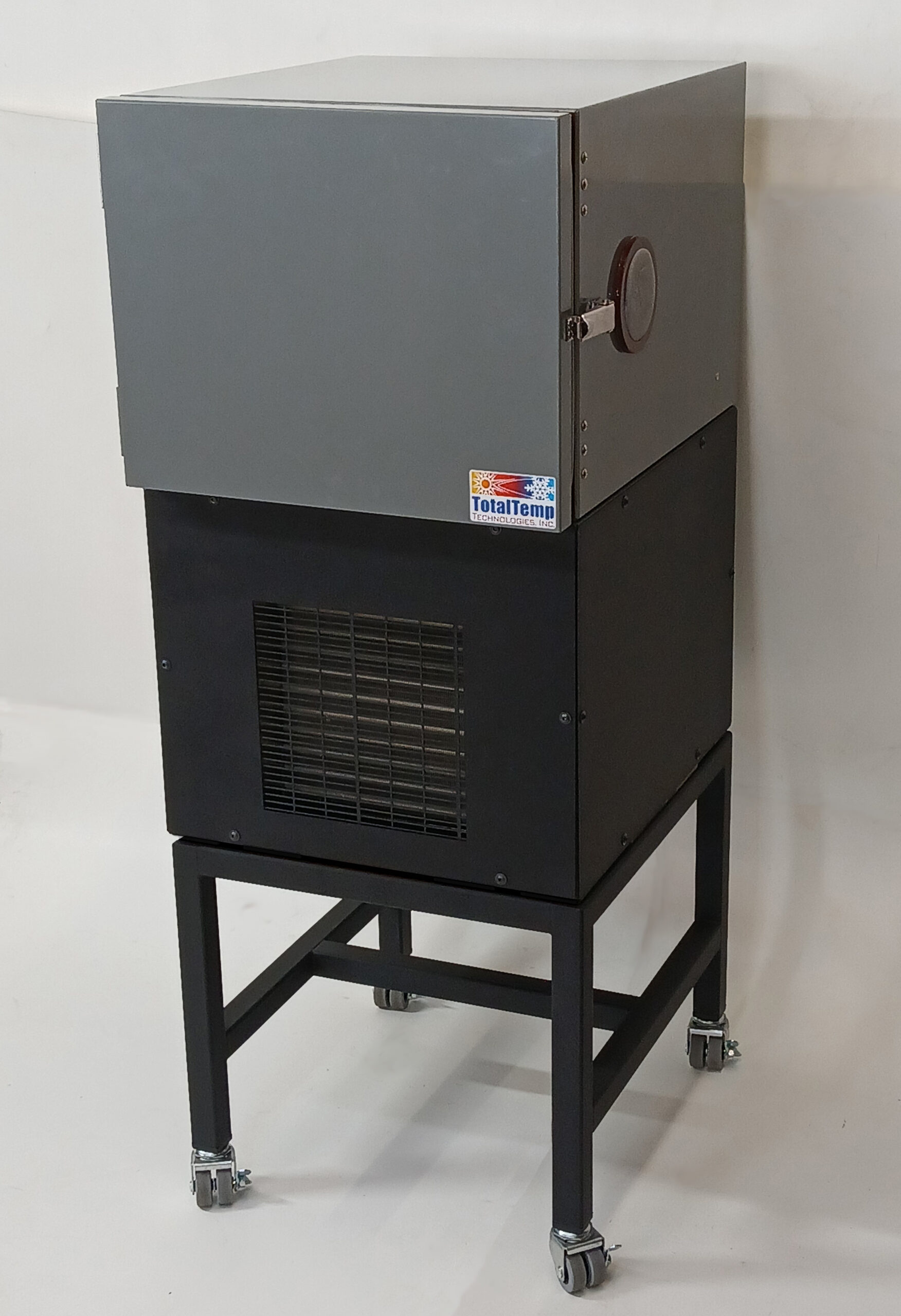

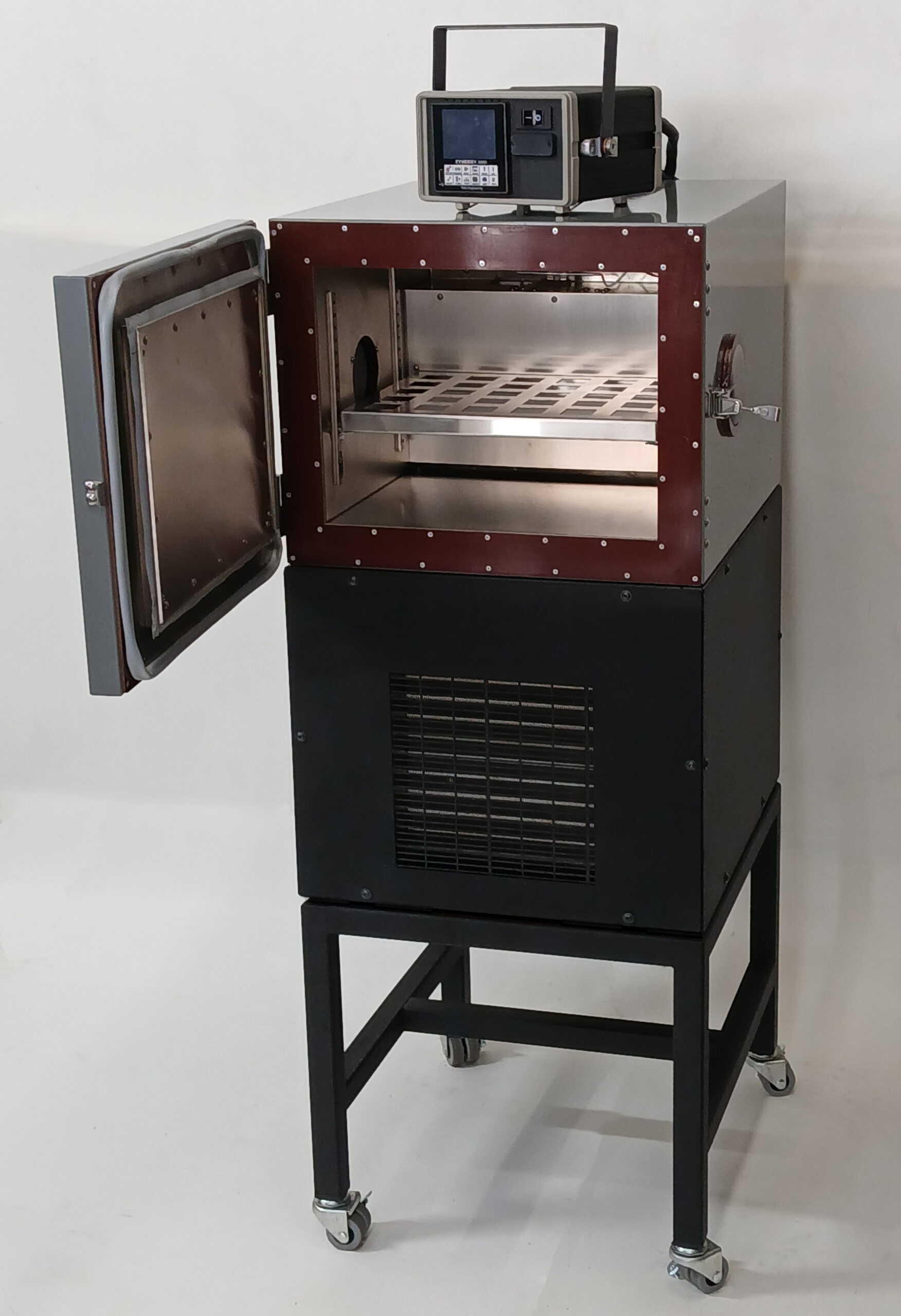

Caster Stand Chambers & Benchtop Designs Available.
Cryogenic or as a mechanically refrigerated compressor-based system.
| Capacity Cubic Feet | Capacity Cubic Liters | Exterior Dimensions Inch | Exterior Dimensions Cm | Interior Dimensions Inch | Interior Dimensions Cm |
|---|---|---|---|---|---|
| 1.3 | 36.8 | W 20.2 | W 51.3 | W 16 | W 49.5 |
| D 24.4 | D 61.5 | D 12 | D 30.4 | ||
| H 16.2 | H 41.1 | H 12 | H 30.4 |
| Capacity Cubic Feet | Capacity Cubic Liters | Exterior Dimensions Inch | Exterior Dimensions Cm | Interior Dimensions Inch | Interior Dimensions Cm |
|---|---|---|---|---|---|
| 2.18 | 61.7 | W 25 | W 63.5 | W 19.5 | W 49.5 |
| D 29 | D 73.6 | D 16 | D 40.6 | ||
| H 17 | H 43.1 | H 12.4 | H 31.4 |
| Capacity Cubic Feet | Capacity Cubic Liters | Exterior Dimensions Inch | Exterior Dimensions Cm | Interior Dimensions Inch | Interior Dimensions Cm |
|---|---|---|---|---|---|
| 9 | 255 | W 30 | W 41 | W 25 | W 63.5 |
| D 38 | D 31 | D 25 | D 63.5 | ||
| H 29 | H 31 | H 25 | H 63.5 |

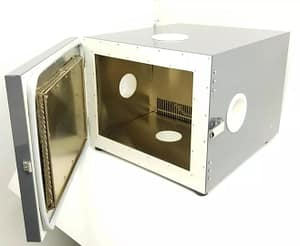

Extended Range Temperature Chamber Design
This Model C230-N Temperature Chamber is designed for an extended temperature range.
With a workspace 12” high x 16” wide x nominal 12” deep.
Custom Apertures made to withstand extreme temperatures, mounted left side, right side, top and bottom of the chamber with a 4” nominal ID.
Please call or email for any questions you may have about extended range Thermal Platforms or Temperature Chambers.
Custom Side Flow Chamber Design
Accommodate card slots for integration into an externally
mounted rack on the rear wall.

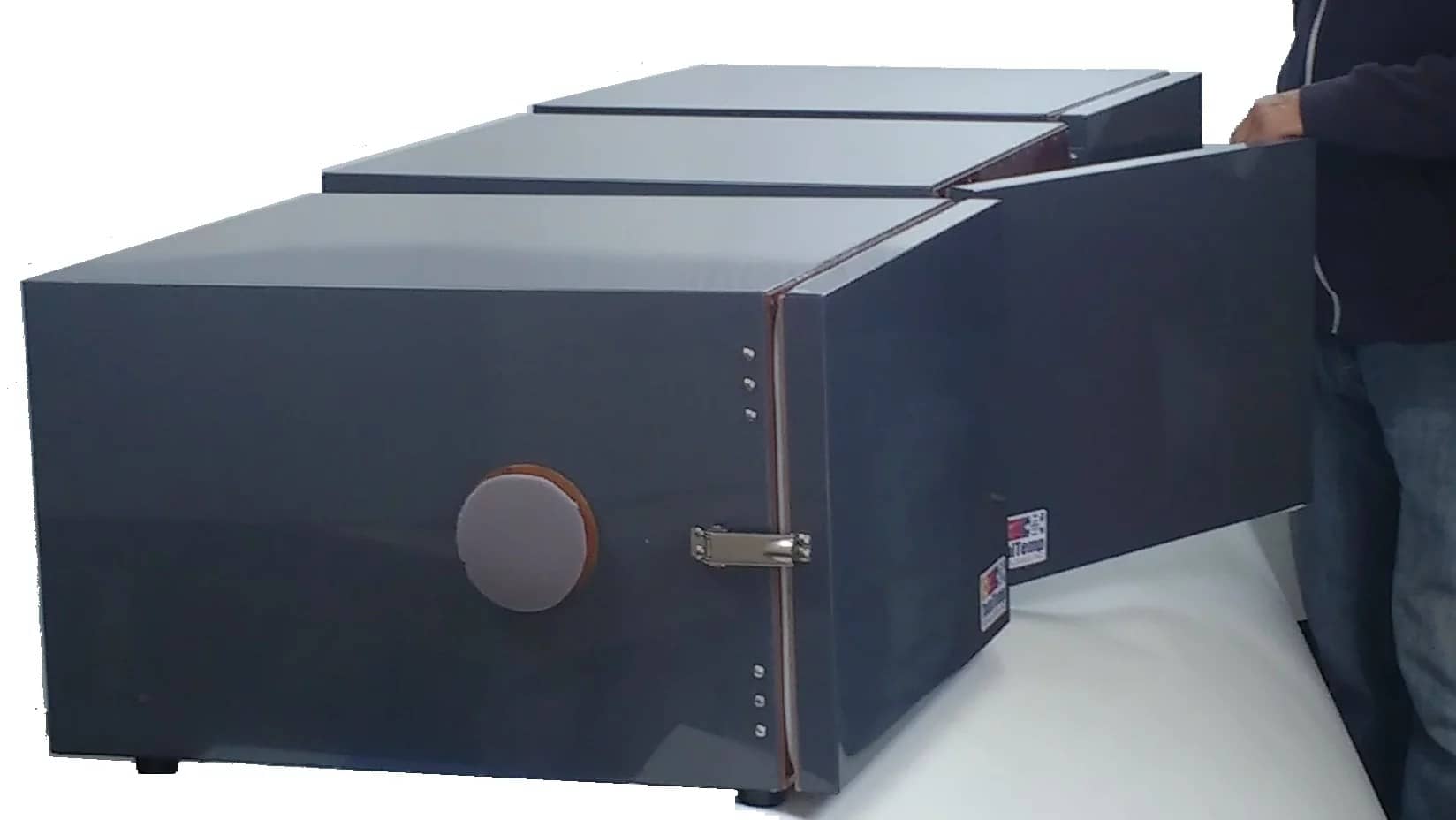

Stacked Chamber Design with built-in shelf stand
Dual-Channel Synergy Nano Temperature Controller is able
to operate and control both chambers simultaneously or independently.
