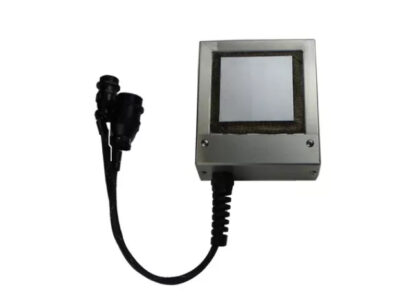

Thermal Platforms Heat Only
TotalTemp’s Mission is to provide better functionality and support to customers with more affordable thermal testing systems.
Available Sizes for Heat Only Thermal Platforms:
- HSD14 has 3.75″ x 3.75″ of usable surface area (14 sq. in / 90 sq. cm)
- HSD49 has 6.5″ x 7.5″ of usable surface area (49 sq in/315 sq cm)
- HSD98 has 6.5″ x 15″ of usable surface area (98 sq in/630 sq cm)
- HSD144 has 12″ x 12″ of usable surface area (144 sq. in/929 sq. cm)
- HSD288 has 12″ x 24″ of usable surface area (288 sq. in/1858 sq. cm)
- HSD450 has 25″ x 18″ of usable surface area (450 Sq. in/2900 Sq. cm)
These Heat Only Thermal Platforms are perfect for using conductive transfer to test components from ambient to hot temperatures. They work best for parts with a low or flat physical profile. They transfer heat outstandingly for programmed or very rapid heating transition times and have a precise temperature control every time from room temperatures to extremely hot.
Temperature Ranges Available:
- Ambient to Maximum +200°C
- Ambient to Maximum +300°C
- Ambient to Maximum +400°C
- Ambient to Maximum +500°C
Many products have CE mark testing and compliance to provide maximum reliability.
Our mission is to provide excellent products and services at accessible prices.
All products are developed with the latest technology and innovative frameworks.
We take pride in providing excellence in every relationship that we build with our customers. Extended-range models are also available.
HSD14 Heat Only
3.75″ x 3.75″ usable surface area (14 sq in / 90 sq cm)
Chassis dims. (HxWxD) 2.25″ x 6.25″ x 7.25″
HSD144 Heat Only
12″ x 12″ usable surface area (144 sq in / 929 sq cm)
Chassis dims. (HxWxD) 2.25″ x 14.35″ x 17.6″
