Thermal Platforms and Temperature Chambers for Electronics Testing

  • Add -N to the end of a model number for the Synergy Nano Programmable Temperature Controller.
  • Add -E to the end of a model number for the economic Controller. Watlow PM6 or equivalent Temperature Controller
  • Thermal Machine

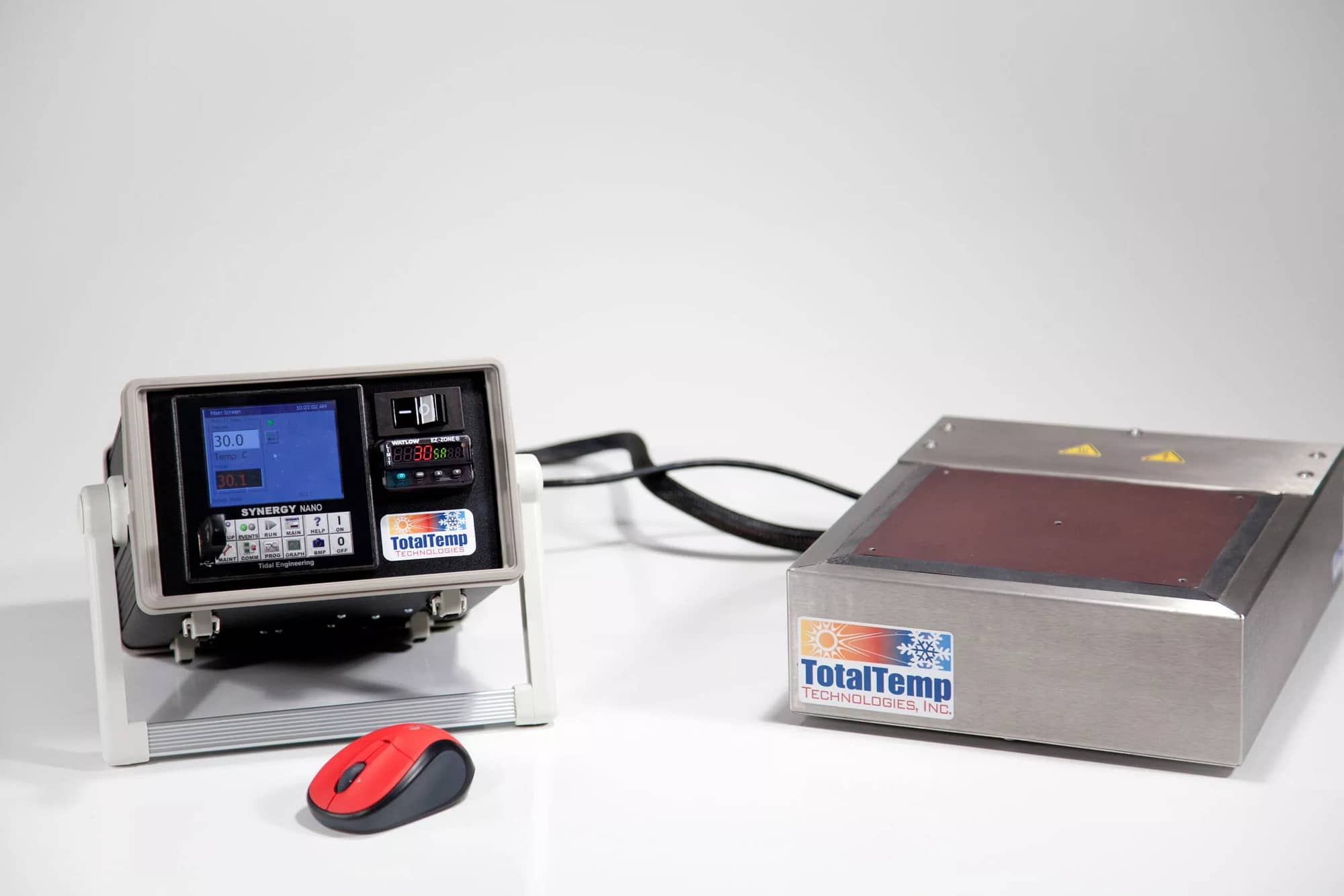

    SD49-N
    6.5” x 7.5” surface, new, +200°C to -100°C Liquid Nitrogen cooling 100 psi. max. High performance, with an advanced temperature controller.
    Includes a built-in safety limit controller with a secondary valve for Nitrogen cut-off. Mouse not included. See Data Sheet
    Thermal Machine

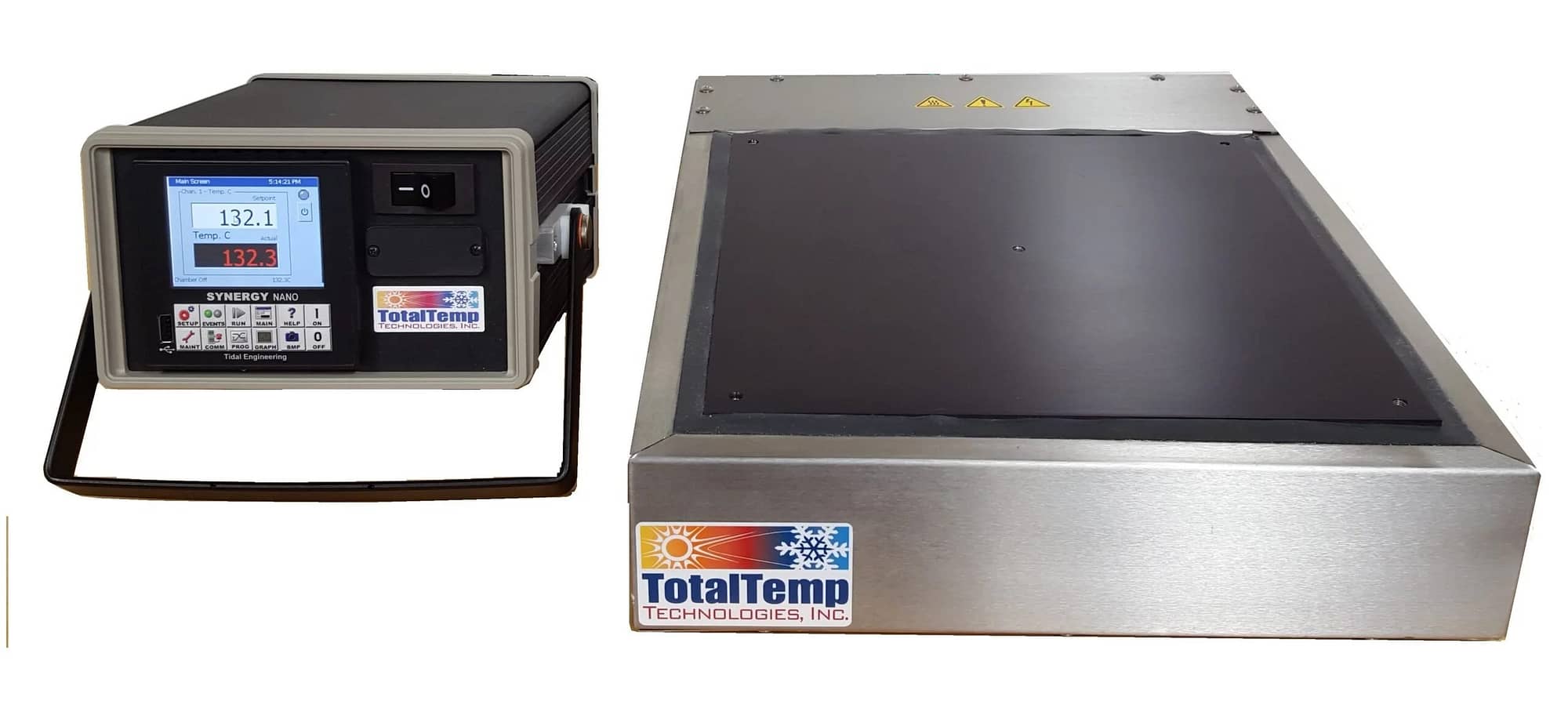

    SD144-N
    12” x 12” surface, new, +200°C to -100°C Liquid Nitrogen cooling, 100 psi. max. High-performance unit, with advanced temperature controller.
    Includes a built-in safety limit controller with a secondary valve for Nitrogen cut-off. See Data Sheet
    Thermal Machine
    SD98-N
    6.5″ x 15″ surface, +200°C to -100°C Liquid Nitrogen cooling 100 psi. max. High performance, with an advanced temperature controller.
    Includes a built-in safety limit controller with a secondary valve for Nitrogen cut-offSee Data Sheet
    Thermal Machine
    SD450-N
    18” x 25” surface thermal platform, -100°C to +200°C using Liquid Nitrogen.
    Requires 208 Volts 30 Amp circuit for 6500 Watts of heat. Please specify desired pressure, low 10-50 PSI or high 50-125 PSI
    With advanced Synergy Nano temperature controller and an independent limit controller with safety valve.
    Ships on pallet 170 Pounds, includes standard warranty. See Data Sheet
    Thermal Machine
    C230-N Extended Temperature
    Range +325°C to -160°Celcius
    Stainless steel workspace 12” H x 16” W x 12” D
    High performance, Liquid Nitrogen cooling. Has advanced Synergy Nano temperature controller.
    Quantity two 3.8” nominal port, left and right of the workspace.
    Includes a built-in safety limit controller with a secondary valve for Nitrogen cut-off See Custom Wide-Range Temperature Chambers
    Thermal Machine
    Delta 9064 Refurbished Temperature Chamber (Picture for reference only)
    Used, very clean, upgraded modern touch screen full-featured programmable temperature controller or a less expensive alternative, includes warranty.
    +175°C to -75°C. Uses liquid Nitrogen as a coolant. Stainless Steel Interior I.D. 20"W X 16"D X 12"H
    $4,950
    Thermal Machine
    SD144-E
    12” x 12” surface, new, +200°C to -100°C Liquid Nitrogen cooling, 100 psi. max. High-performance unit with a reliable Temperature Controller
    Includes Watlow PM6 or equivalent Temperature Controller, See Data Sheet
    Thermal Machine
    SD49-E
    6.5” x 7.5” surface, new, +200°C to -100°C Liquid Nitrogen cooling 100 psi. max. High performance, with a reliable temperature controller.
    Economic Watlow PM6 or equivalent Temperature Controller. See Data Sheet
    Thermal Machine
    Polycarbonate Probing Covers
    Shown on an SD49 Thermal Platform with a standard hinged lid, purge port added when purge system is ordered or per user request.
    Six Sizes to choose from. Some users require LOW ESD Polycarbonate, standard clear is available and more affordable. Learn more
    Thermal Machine
    SD288-N
    24” x 12” surface, new, +200°C to -100°C Liquid Nitrogen cooling, 100 psi. max. High-performance unit, with advanced temperature controller.
    Includes a built-in safety limit controller with a secondary valve for Nitrogen cut-off. See Data Sheet
    Thermal Machine

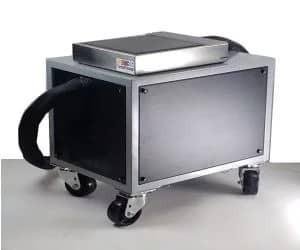

    SC144-N
    12” x 12” surface thermal platform, -40°C to +175°C with no need for Nitrogen, fast cooling rates, 20°C per minute over most of the range.
    Not new, demo unit for a show, never shipped to the customer. With advanced Synergy Nano temperature controller, warranty.
    $9,850
    Thermal Machine
    SD450-N
    18” x 25” surface thermal platform, -100°C to +200°C using Liquid Nitrogen.
    Requires 208 Volts 30 Amp circuit for 6500 Watts of heat. Please specify desired pressure, low 10-50 PSI or high 50-125 PSI
    With advanced Synergy Nano temperature controller and an independent limit controller with safety valve.
    Ships on pallet 170 Pounds, includes standard warranty. See Data Sheet
    Thermal Machine
    SD14-N
    3.75″ x 3.75” surface, +200°C to -100°C Liquid Nitrogen cooling 100 psi. max. High performance, with an advanced temperature controller.
    Includes a built-in safety limit controller with a secondary valve for Nitrogen cut-off See Data Sheet
    $5,985
    Thermal Machine
    C460-N
    Internal Workspace 20" Wide x 12" High x 16" Deep , -100°C to +200°C using Liquid Nitrogen.
    Please specify desired pressure, low 10-50 PSI or high 50-125 PSI
    Comes with cabling aperture, shelves are optional
    Three type available, aperture left, right and both left and right
    With Advanced Synergy Nano Temperature Controller and an independent limit controller with safety valve.
    Ships on pallet or in a crate, includes standard warranty. See Data Sheet
    Thermal Machine
    C900-N
    Internal Workspace 25 x 25 x 25", -100°C to +200°C using Liquid Nitrogen.
    Please specify desired pressure, low 10-50 PSI or high 50-125 PSI
    Comes with two cabling apertures, shelves are optional
    With Advanced Synergy Nano Temperature Controller and an independent limit controller with safety valve.
    Ships on pallet or in a crate, includes standard warranty. See Data Sheet
    Thermal Machine
    CC230-N Temperature Range +175°C to -30°Celcius
    Stainless steel workspace 12” H x 16” W x 12” D.
    -30°C with no need for Nitrogen and has an advanced Synergy Nano Temperature Controller.
    Quantity two 3.8” nominal port, left and right of the workspace.
    $8,850
    Thermal Machine
    C230-N
    Stainless steel workspace 12” H x 16” W x 12” D. -100°C to +200°C using Liquid Nitrogen
    Quantity two 3.8” nominal port, left and right of the workspace.
    With advanced Synergy Nano temperature controller and an independent limit controller with safety valve.
    Ships on pallet or in a crate, includes standard warranty. The Chamber stand is 2-3 week option See Data Sheet
    $7,990
    Thermal Machine
    Super Quiet Muffler
    SQM Part Number 14-00004
    Greatly reduces the noise level and dampens the pitch of coolant being spent by a Thermal Platform Larger Thermal Platforms, SD288 and above use 24-00010.
    For Use with Liquid Nitrogen Cooled Test EquipmentSee More Accessories
    $415
