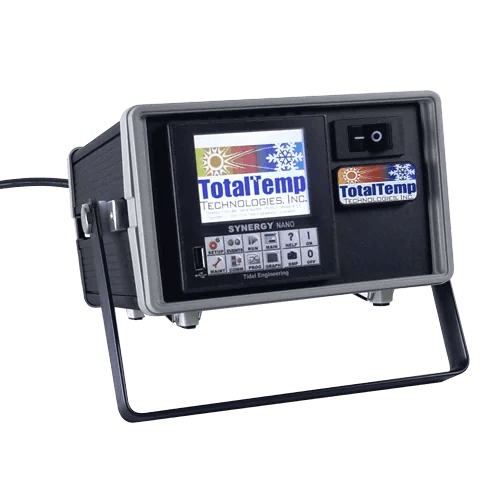

Synergy Nano Temperature Controller Data Sheet

Dim. 5″ x 8-3/16″ x 8-1/2″ (HWD)
With feet and tilt stand – 5-1/2″ x 10″ x 10″

temperature control

Primary Features & Benefits:

    • Color LCD touch screen – Easy to use, easy to read with graphing capability.
    • FTP server – Standardized communication protocol that allows controller files to be accessed from a web browser.
    • Remote Control via RS-232 or RS-485
    • Ethernet, 10/100 BaseT – Rapidly becoming the instrument control method of choice.
    • Thumb drive compatible – Convenient easy storage and downloading capability.
    • Telnet – An internet protocol over serial or USB that provides access to the command-line interface on a remote system.
    • 1 Gb internal storage, 64Mb SDRAM – Equates to abundant storage capacity.
    • One or two channels, flexible input configurations – Provides another advantage with the ability to use various types of temperature sensing probes, be it RTD (100 Ohm or 500 Ohm), or multiple types of Thermocouples.
    • Real-time clock – Always useful for tracking data.
    • Auto resume option – Selectable auto-resume behavior.
    • Compact size – Saves that precious space on your benchtop or in your rack.
    • Application Notes further detail the features of the Synergy Nano
    • Built-in multiple configurable alarms – User-defined and adjustable to take appropriate action if processes or conditions get out of bounds.

Synergy Nano Controllers in Action


The Next Generation TotalTemp Technologies Temperature Controllers

Efficient, fast, and accurate temperature cycling just got a lot easier. If you are ready to upgrade from the more limited control options of the other manufacturers, please read on.

These Controllers are ideal for use in when controlled environments are essential for the testing, screening, and calibration of mission-critical systems and components. Designed to take complete command of temperature conditioning systems, its logic circuits automatically select heating/cooling modes as required, totally controls programming of temperature, ramping, and dwell times as needed.

The Synergy Nano Controller employs a common user and programming interface and provides OEMs, test labs, and production facilities with cost-effective integration of control, logging, and connectivity features, and is appropriate for use in the broadest spectrum of environmental testing applications including temperature cycling and conditioning, thermal shock, and thermal vacuum testing processes.

The Synergy Nano Controller combines the functions of a temperature controller and a data logger. Moreover, it allows users to program up to six custom outputs for special applications and optional features. Process inputs include RTD, Thermocouple, voltage, and current. Boasting the Microsoft Windows™ CE.NET operating system, this stable, feature-rich system’s sophisticated communications capabilities also include built-in remote control/monitoring. The Synergy Nano Controller also easily retrofits into legacy equipment.

Retrofit versions available!

Finally sustainability for tired equipment. See Fix it or replace it for more on retrofit controllers for aging systems.

Remote Access

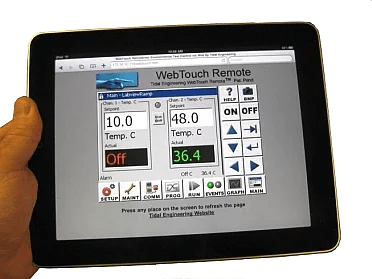

Remotely access Synergy Nano on any networked computer, even iPad.

WebTouch Remote software makes remote monitoring and controls easy.

Click HERE for a video demonstration.

The Synergy Family of Controllers

Now automatically plot test results to network printers and can e-mail PDF formatted plots, without a PC. These new optional features augment advanced controller capabilities like Web-based remote control, a 100 MB logging system, and the widest range of application support including temperature, humidity, altitude, HALT/HASS, thermal shock chambers, and thermal platforms.

Synergy Nano Controller Documents:

Synergy Nano Spec Sheet
Synergy Nano Full Technical Manual
Synergy Nano App Notes

Supporting the effort to get product testing done correctly, repeatedly with consistently reported results, Synergy Server and available cloud storage technologies let you have your test data quickly and easily organized, with traceability.

The days of circle-chart recorders and hand plots are long gone, your test results can be reliably automatically stored. Reported to PDF, in email, directly to a network printer or to the Synergy Server. There is no need to file things by hand anymore

Cost savings, security, automation, accessibility, collaboration and recovery are all made easy with these features.

Cloud storage is quickly becoming the method of choice for Engineers and Managers who need to be responsible for test data.
