Mini Benchtop Temperature Chambers

Primary Features & Benefits:

With a top-opening door, they are well suited for small parts and for automated benchtop testing, either with a test operator or unattended.
They provide a convenient alternative to traditional benchtop chambers with a front hinged door.
BC144-N is a 13″ x 13″ x 8.5″ high workspace
BC144-N has left and right 2″ cabling feed-throughs.
BC49-N is 7.5” 8.5” x ~5”H workspace
BC49-N has left and right cabling feed-throughs.
Fast and efficient, wide temperature range. Uses little workbench space.
Extra active heating and cooling on the floor will make it a Hybrid Benchtop Chamber.

Order BC49 Order BC144

BC49 Product Data Sheet

BC144 Product Data Sheet

Temperature Chambers

Range from -100°C to +200°C (-148°F to 392°F) Extended Ranges Available

Coolant choices

L-N2 -100°C , High or Low Pressure

L-CO2 -65°C , High or Low Pressure

Refrigeration Compressor

-40°C with Single Stage

More Temperature Chambers

Model C900, Model C460 or the smaller Model C230

C230 Temperature Chambers

Specifications - C230

Capacity Cubic Feet	Capacity Cubic Liters	Exterior Dimensions Inch	Exterior Dimensions Cm	Interior Dimensions Inch	Interior Dimensions Cm
1.3	36.8	W 20.2	W 51.3	W 16	W 49.5
		D 24.4	D 61.5	D 12	D 30.4
		H 16.2	H 41.1	H 12	H 30.4

C460 Temperature Chambers

Specifications - C460

Capacity Cubic Feet	Capacity Cubic Liters	Exterior Dimensions Inch	Exterior Dimensions Cm	Interior Dimensions Inch	Interior Dimensions Cm
2.18	61.7	W 25	W 63.5	W 19.5	W 49.5
		D 29	D 73.6	D 16	D 40.6
		H 17	H 43.1	H 12.4	H 31.4

C900 Temperature Chambers

Specifications - C900

Capacity Cubic Feet	Capacity Cubic Liters	Exterior Dimensions Inch	Exterior Dimensions Cm	Interior Dimensions Inch	Interior Dimensions Cm
9	255	W 30	W 41	W 25	W 63.5
		D 38	D 31	D 25	D 63.5
		H 29	H 31	H 25	H 63.5

Benchtop Temperature Chamber

Model C230

Cryogenically Cooled Temperature Chambers

Model C460

Cryogenically Cooled Temperature Chambers

Model C900

Cryogenically Cooled Temperature Chambers

Extended Temperature Range C230 capable of -195°C to 350°C. The custom C230 temperature chamber is shown with several 4 inch diameter high temperature apertures.

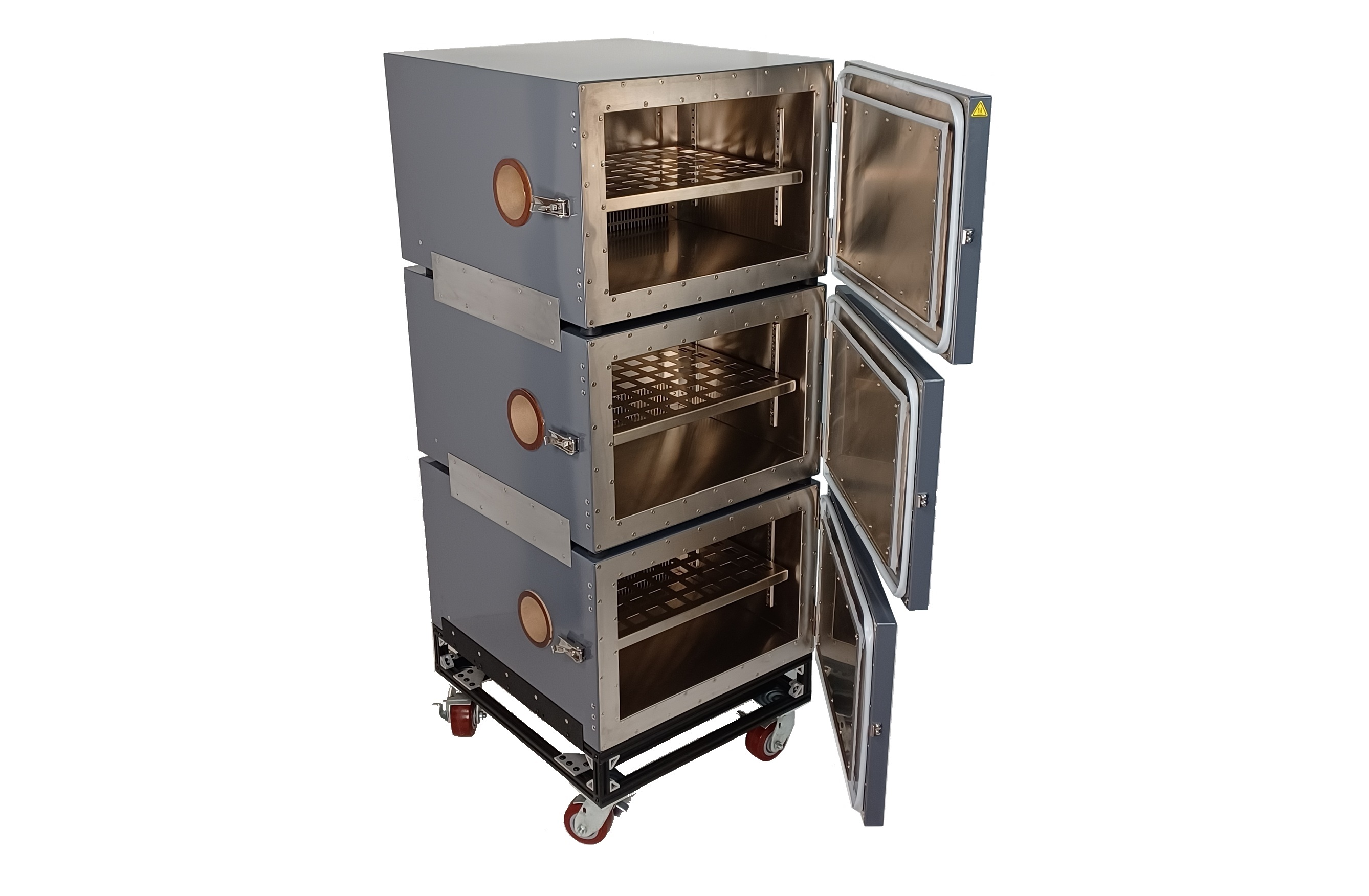

An optional stack feature helps save space Three C460 Temperature Chambers on a caster stand, fits through a standard doorway.

Quick Ship Chambers Available Now !!!

Optional SD144 2.0 Thermal Platform Configured to operate in a temperature chamber to improve performance. The small valve box can be mounted outside the chamber. Wires for sensors and heaters are routed outside the chamber to the controller. Much like the TotalTemp HBC49 or HBC144, this option utilizes both conductive and convective heat transfer. Several Sizes available, Model shown is 12 Inch Square.
