Primary Features & Benefits:

  • 6.5 x 15 inch usable surface area
  • 165 x 301 millimeters usable surface area
  • 98 square inches/ 630 square centimeters total
  • 6.5 x 7.5 inch per zone
  • 165 x 190 millimeter per zone
  • Clamps and Probing Cover are optional
  • Hard anodized surface for durability
  • Threaded holes for adapter plate or clamp sets
  • Adapter plates available
  • Excellent access to DUT
  • Energy-efficient temperature cycling
  • Extremely fast temperature transition rates
  • Small footprint for minimal impact on valuable bench space
  • High accuracy temperature sensors for precise control
  • Abundant heater arrangement for low surface gradients
  • Rugged Stainless Steel chassis
  • Designed for easier serviceability
  • Certified products available


Product Data Sheet

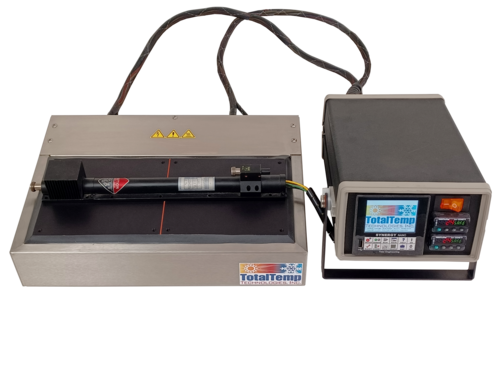

SD49/98-N and SD144/288-N were originally designed for Travelling Wave Tube (TWT) testing. Fast, efficient, and precisely controlled dual zone temperature conditioning for devices that have a flat thermally conductive surface. When using thermal conduction to condition the device at hot and/or cold temperatures, the results are much faster than using thermal convection, as used in environmental chambers. With a faster temperature cycling capacity, the result is a significant increase in production throughput. This not only saves time and money, but the smaller size of a platform over a chamber saves valuable floor and bench space while improving energy efficiency.

All TotalTemp cryogenically cooled products are designed to operate between -100°C (-100°C with L-N2, -65°C with L-CO2) and +200°C. Request a Quote
